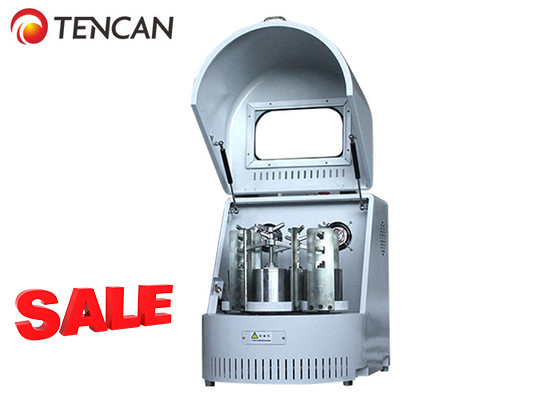

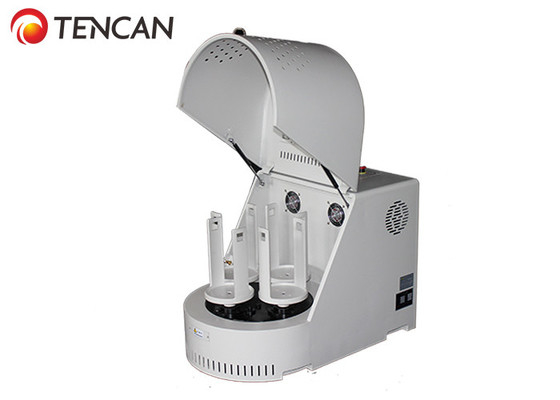

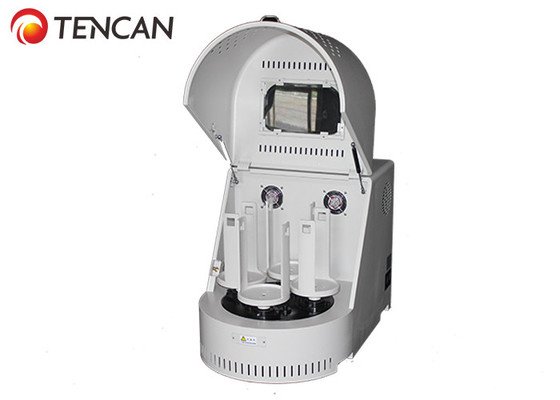

Frequency Control 0.25kW Semi-circle Vertical Planetary CE BQM-0.4L Lab Scale Nano Powder Grinding Ball Milling Machine
Dettagli:
| Luogo di origine: | Hunan, Cina |
| Marca: | TENCAN |
| Certificazione: | CE ISO |
| Numero di modello: | XQM-0.4A |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | Inscatoli + schiuma |
| Tempi di consegna: | 3-7 giorni lavorativi dopo avere ottenuto pagamento completo |
| Termini di pagamento: | T/T, Western Union, L/C, MoneyGram |
| Capacità di alimentazione: | 200 serie al mese |
|
Informazioni dettagliate |
|||
| Nome del prodotto: | 0.4L mulino a sfere planetario | Modello N.O.: | XQM-0.4A |
|---|---|---|---|
| Voltaggio: | 220-50Hz/110V-60Hz | Potenza: | 0.25kw |
| Velocità di rotazione: | 90-870 giri al minuto | Controllo della velocità: | Controllo della frequenza |
| Dimensioni: | 500*300*340mm | Peso netto: | 29KG |
| Evidenziare: | Lab Scale Planetary Ball Mill,Semi-circle Planetary Ball Mill,0.25kW Planetary Ball Mill |
||
Descrizione di prodotto
China Leading CE Semi-circle Vertical Planetary Digital BQM-0.4L Lab Scale Nano Powder Grinding Ball Milling Machine
Overview
Planetary ball mill is an efficient and precise laboratory grade powder preparation equipment, mainly used for material crushing, mixing, dispersion, and preparation of nanomaterials. Its core structure includes planetary disks, ball milling tanks (semi-circular or circular), grinding balls, drive systems, and safety devices. The equipment achieves efficient grinding of materials through the combined motion of planetary gear revolution and rotation, combined with high-energy impact and friction. The design of the semi-circular ball milling jar further optimizes space utilization and grinding efficiency, making it suitable for small-scale, high-precision experimental needs.
Working Principle
Planetary motion mechanism: The turntable drives the ball mill jar to revolve around the main axis, while the jar itself rotates at high speed, forming a composite centrifugal force field.
Grinding function: The grinding ball inside the tank collides with the material at high speed under centrifugal force, generating shear, impact, and friction, achieving crushing and mixing.
Parameter control: By adjusting the speed (such as 200-800 rpm), grinding time, and ball to material ratio, the particle size of the finished product can be precisely controlled.
Applications
Background: Made by Tencan planetary ball mill grinding, equipped with stainless steel tanks and stainless steel balls. Grinding time: 1 hour. Result: The output granularity meets the customer's requirements.
Application model: XQM-0.4 vertical planetary ball mill
1. Description
1) Application areas: chemical, light industry, pharmaceutical, environmental protection and other departments
2) Feed size: 1-5mm
3) Feed quantity: 50g
4) Material status: Dry
5) Customer requirement: Output powder that is soluble in water after grinding
Features
Efficiency: The planetary motion mode (revolution+rotation) provides high energy density, and the grinding efficiency is significantly improved compared to traditional equipment.
Uniformity: The three-dimensional motion trajectory ensures thorough mixing of materials and uniform particle size distribution (with a minimum of 0.1 microns).
Multifunctionality: Supports dry/wet grinding and is compatible with ball milling tanks made of different materials such as stainless steel, ceramics, and polyurethane.
Safe and reliable: equipped with safety switches, overload protection, and low-noise design, in compliance with laboratory safety standards.
Intelligent control: variable frequency speed regulation, timed forward and reverse rotation, LED display, and programmed operation to improve experimental repeatability.
Technical Parameters
| Technical Features of Mini Vertical Planetary Ball Mill | |
| Drive Mode | Gear drive and belt drive |
| Operation Mode | Two or four grinding jars working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling jar |
| Feeding Size | Soil material≤10mm, other materials≤3mm |
| Output Granularity | Smallest granule reaches 0.1 μm |
| Rotational Speed Ratio | 1/2 |
| Max. Continuous Operating Time | 72hours |
| Optional Modes of Speed Control | Frequency conveter and automatic timing control |
| Materials of Jar | Stainless steel, agate, nylon, corundum, zirconia, etc. |
| Main Parameters of Mini Vertical Planetary Mill Ball | |||||||
| Model | Power (KW) |
Voltage | Dimension(mm)) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
Total Timing (min) |
Alternating Run Time of Forward & Reversal Rotation (min) |
| XQM-0.4A | 0.25 | 220V-50Hz | 530*300*340 | 45-435 | 90-870 | 1-9999 | 1-999 |

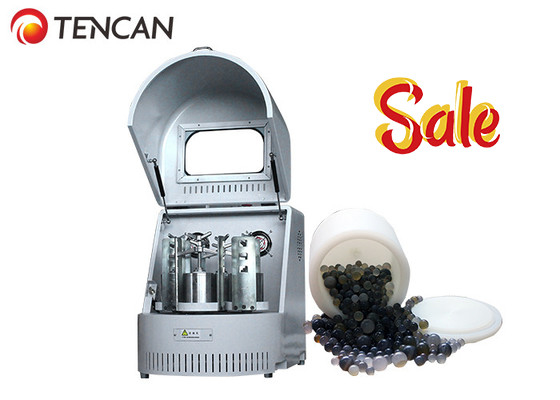

Accessories for Planetary Ball Mill
We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, PTFE and etc.
Available Mill Balls: Agate balls, tungsten carbide balls, alumina balls, zirconia balls
