1200°C Muffle Furnace with 50-Segment PID Control and Polycrystalline Mullite Fiber Lining for High-Temperature Applications
Dettagli:
| Luogo di origine: | Cina |
| Marca: | TENCAN |
| Certificazione: | CE |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Tempi di consegna: | 7~15 |
| Termini di pagamento: | L/C,D/A,D/P,T/T,Western Union |
|
Informazioni dettagliate |
|||

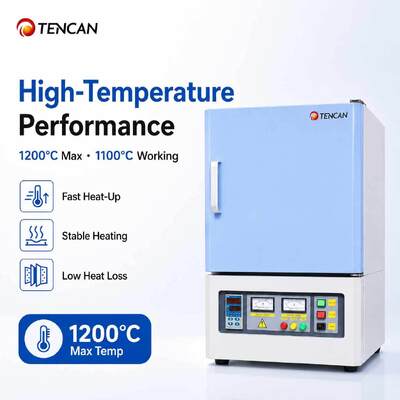

| Tipo di prodotto: | Forno da laboratorio a scatola | Temperatura massima: | 1200 ° C. |
|---|---|---|---|
| Temperatura di lavoro: | 1100°C | Volume della camera: | 1L~729L, personalizzabile |
| elemento riscaldante: | Resistenza riscaldamento del filo | Controllo della temperatura: | Controllo PID programmabile a 50 segmenti |
| rivestimento refrattario di forni: | Fibra di mullite policristallina | Progettazione di raffreddamento: | Guscio a doppio strato con raffreddamento a ventola |
| Protezione della sicurezza: | Protezione allarme surriscaldamento | Applicazione: | Sinterizzazione, fusione e analisi dei materiali |
| Evidenziare: | Polycrystalline Muffle Furnace,1200°C Muffle Furnace,50-Segment Muffle Furnace |
||
Descrizione di prodotto

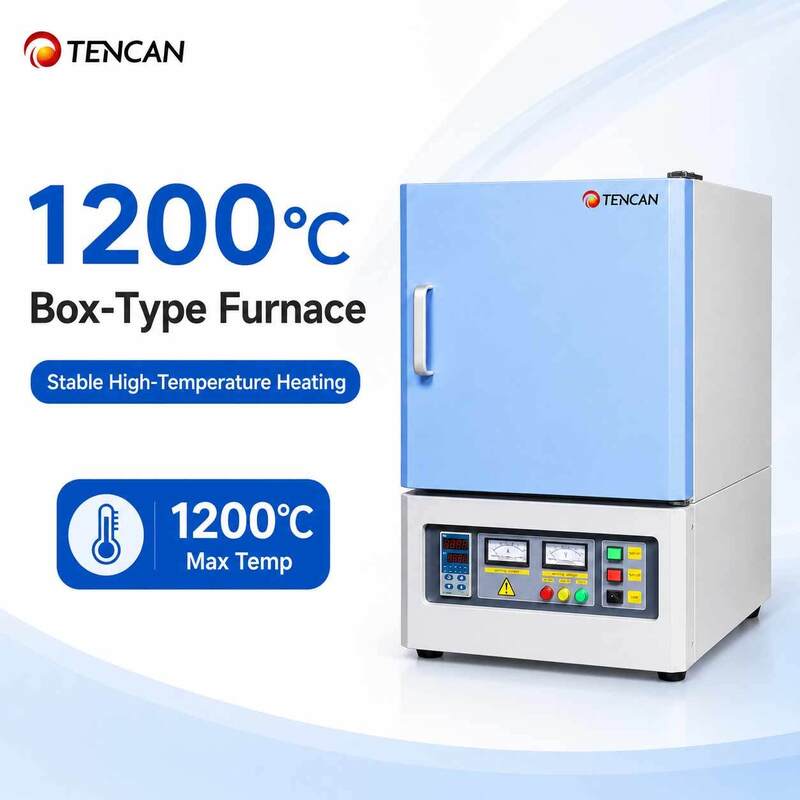

Muffle Furnace for Laboratory and Industrial Heat Treatment
Our Muffle Furnace, also known as a box-type resistance furnace or high-temperature box furnace, is designed for precise, clean, and stable heat treatment of metals, ceramics, powders, chemicals, and compound materials. Heated by electric heating elements and equipped with an independent muffle chamber, it allows samples to be sintered, ashed, melted, annealed, or heat-treated without direct contact with the heating elements, helping reduce contamination and improve process consistency.
Built for both research and production environments, this muffle furnace provides accurate temperature control, uniform heat distribution, and reliable safety performance. It is widely used in materials science, chemical analysis, ceramic processing, powder metallurgy, metal heat treatment, laboratory testing, and other high-temperature applications.

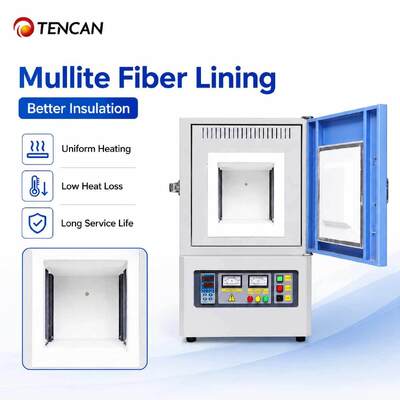

The furnace chamber is made of polycrystalline mullite fiber, offering low thermal conductivity, high structural strength, excellent thermal insulation, and improved energy efficiency. A reinforced composite furnace roof helps prevent deformation or collapse during long-term high-temperature operation, ensuring stable performance and extended service life.
This series of box furnaces is suitable for universities, research institutes, laboratories, and industrial enterprises that require dependable equipment for sintering, melting, ashing, analysis, and heat treatment of metallic, non-metallic, and composite materials.
Product Features
- Maximum temperature range: room temperature to 1800°C.
- Available chamber capacities from 1 L to 1000 L.
- Heating element options include FeCrAl resistance wire, U-shaped silicon carbide heating elements, and U-shaped molybdenum disilicide heating elements.
- Customizable top-opening or side-opening door design helps keep operators away from direct heat exposure.

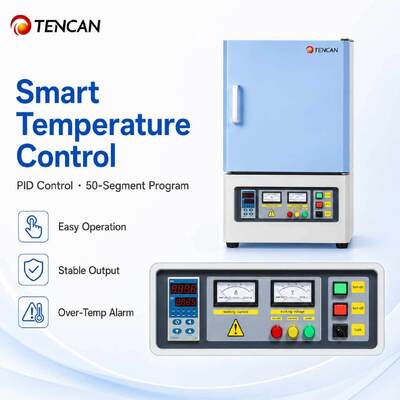

- Intelligent 50-segment programmable automatic temperature control.
- Built-in over-temperature alarm for safer operation.
- Double-layer air-cooling structure with cooling fans helps keep the outer shell temperature below 60°C.

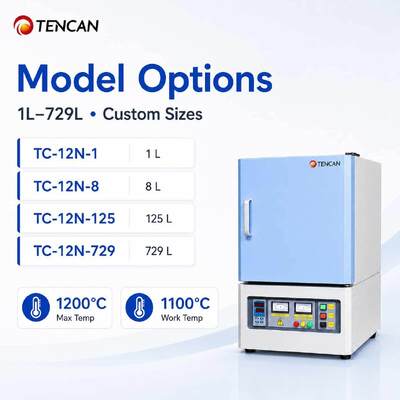

1200°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-12N-1 | 1200 | 1100 | 100×100×100 | 1 | 0.8 | 1 | Type K |
| TC-12N-3 | 1200 | 1100 | 150×150×150 | 3 | 2.5 | 1 | Type K |
| TC-12N-8 | 1200 | 1100 | 200×200×200 | 8 | 5 | 1 | Type K |
| TC-12N-12 | 1200 | 1100 | 200×200×300 | 12 | 6 | 1 | Type K |
| TC-12N-36 | 1200 | 1100 | 300×300×400 | 36 | 10 | 3 | Type K |
| TC-12N-64 | 1200 | 1100 | 400×400×400 | 64 | 16 | 3 | Type K |
| TC-12N-125 | 1200 | 1100 | 500×500×500 | 125 | 25 | 3 | Type K |
| TC-12N-216 | 1200 | 1100 | 600×600×600 | 216 | 36 | 3 | Type K |
| TC-12N-512 | 1200 | 1100 | 800×800×800 | 512 | 64 | 3 | Type K |
| TC-12N-729 | 1200 | 1100 | 900×900×900 | 729 | 80 | 3 | Type K |
1400°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-14S-1 | 1400 | 1300 | 100×100×100 | 1 | 1 | 1 | Type S |
| TC-14S-3 | 1400 | 1300 | 150×150×150 | 3 | 3 | 1 | Type S |
| TC-14S-8 | 1400 | 1300 | 200×200×200 | 8 | 5 | 1 | Type S |
| TC-14S-12 | 1400 | 1300 | 200×200×300 | 12 | 7 | 1 | Type S |
| TC-14S-36 | 1400 | 1300 | 300×300×400 | 36 | 11 | 3 | Type S |
| TC-14S-64 | 1400 | 1300 | 400×400×400 | 64 | 18 | 3 | Type S |
| TC-14S-125 | 1400 | 1300 | 500×500×500 | 125 | 27 | 3 | Type S |
| TC-14S-216 | 1400 | 1300 | 600×600×600 | 216 | 40 | 3 | Type S |
| TC-14S-512 | 1400 | 1300 | 800×800×800 | 512 | 70 | 3 | Type S |
| TC-14S-729 | 1400 | 1300 | 900×900×900 | 729 | 88 | 3 | Type S |
1700°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-17M-1 | 1700 | 1600 | 100×100×100 | 1 | 1 | 1 | Type B |
| TC-17M-3 | 1700 | 1600 | 150×150×150 | 3 | 4 | 1 | Type B |
| TC-17M-8 | 1700 | 1600 | 200×200×200 | 8 | 7 | 1 | Type B |
| TC-17M-12 | 1700 | 1600 | 200×200×300 | 12 | 8 | 1 | Type B |
| TC-17M-36 | 1700 | 1600 | 300×300×400 | 36 | 12 | 3 | Type B |
| TC-17M-64 | 1700 | 1600 | 400×400×400 | 64 | 20 | 3 | Type B |
| TC-17M-125 | 1700 | 1600 | 500×500×500 | 125 | 30 | 3 | Type B |
| TC-17M-216 | 1700 | 1600 | 600×600×600 | 216 | 45 | 3 | Type B |
| TC-17M-512 | 1700 | 1600 | 800×800×800 | 512 | 80 | 3 | Type B |
| TC-17M-729 | 1700 | 1600 | 900×900×900 | 729 | 96 | 3 | Type B |
1800°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-18HM-1 | 1800 | 1700 | 100×100×100 | 1 | 2 | 1 | Type B |
| TC-18HM-3 | 1800 | 1700 | 150×150×150 | 3 | 6 | 1 | Type B |
| TC-18HM-8 | 1800 | 1700 | 200×200×200 | 8 | 8 | 1 | Type B |
| TC-18HM-12 | 1800 | 1700 | 200×200×300 | 12 | 9 | 1 | Type B |
| TC-18HM-36 | 1800 | 1700 | 300×300×400 | 36 | 15 | 3 | Type B |
| TC-18HM-64 | 1800 | 1700 | 400×400×400 | 64 | 25 | 3 | Type B |
| TC-18HM-125 | 1800 | 1700 | 500×500×500 | 125 | 35 | 3 | Type B |
| TC-18HM-216 | 1800 | 1700 | 600×600×600 | 216 | 50 | 3 | Type B |
Note: The above specifications are standard models. Custom chamber sizes and configurations are available upon request.
Related Accessories
Standard Accessories
- Furnace door insulation brick
- High-temperature gloves
- Crucible tongs
- User manual
- Spare heating elements for 1400°C and 1700°C models
Optional Accessories
- HD touchscreen controller
- Exhaust port
- Observation window
- Multi-layer kiln furniture
- Alumina crucible
- Communication software
