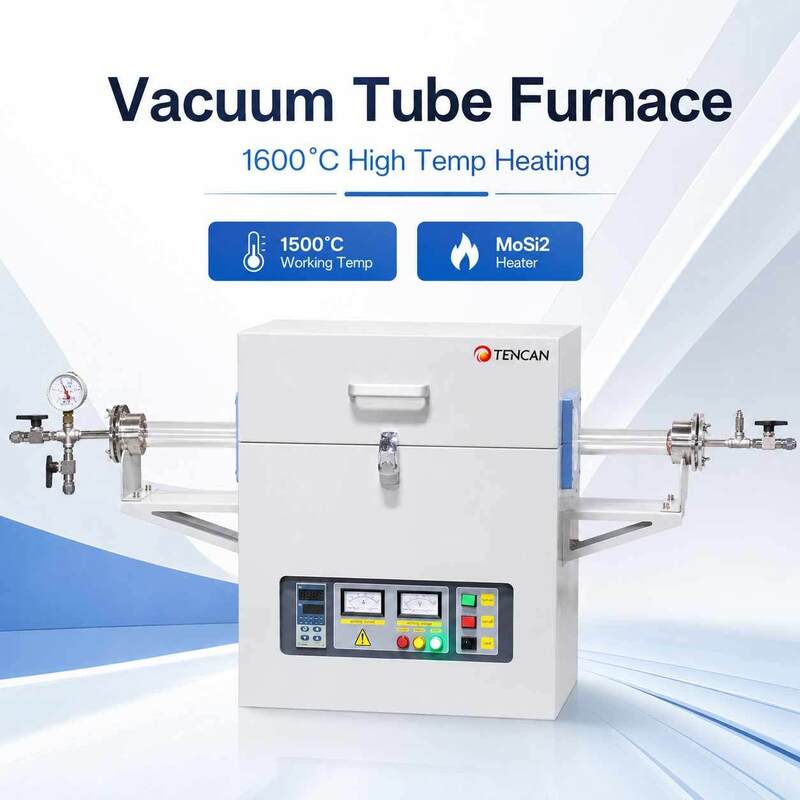

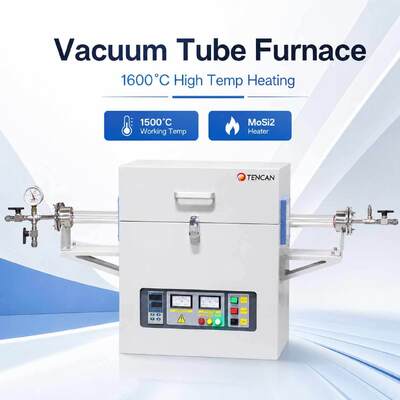

1600°C Vacuum Tube Furnace for High-Temperature Atmosphere Processing

The TENCAN 1600°C Vacuum Tube Furnace is designed for high-temperature experiments and thermal processes that require precise temperature control, reliable sealing performance, and flexible atmosphere conditions. This model uses a high-purity alumina tube / corundum tube as the furnace tube, making it suitable for applications where higher temperature resistance and better chemical stability are required.

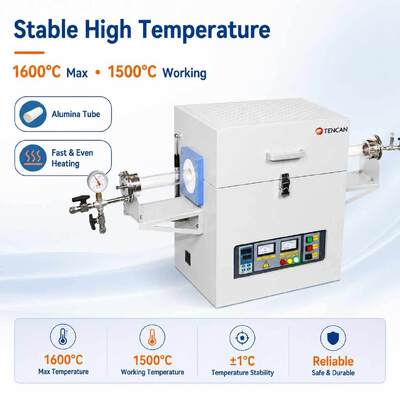

With a maximum temperature of 1600°C and a recommended working temperature of 1500°C, this furnace is widely used for advanced ceramic sintering, powder metallurgy research, metal oxide treatment, inorganic material testing, catalyst preparation, and high-temperature heat treatment under vacuum or protective gas conditions.

The heating system adopts MoSi₂ heating elements, which provide stable high-temperature output and excellent performance for demanding thermal processes. A B-type thermocouple is used for accurate temperature measurement at elevated temperatures, helping maintain reliable process control during long heating cycles.

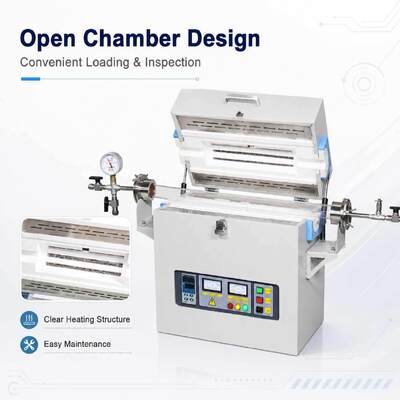

The furnace structure is built with high-quality alumina polycrystalline fiber insulation, offering low heat loss, strong heat retention, and improved energy efficiency. The double-layer air-cooling shell helps reduce the external surface temperature during operation, improving safety for laboratory and industrial users.

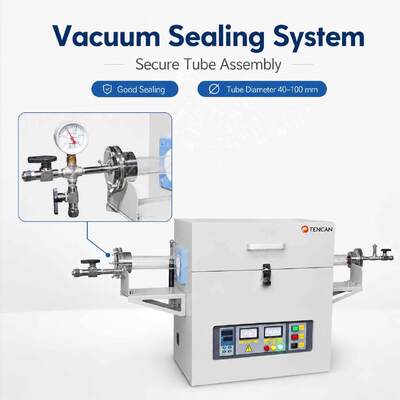

This 1600°C tube furnace supports vacuum, nitrogen, argon, inert gas, and reducing atmosphere processing. The 304 stainless steel double-sealed flanges help improve air tightness, while the adjustable flange support design reduces stress on the furnace tube and helps extend tube service life.

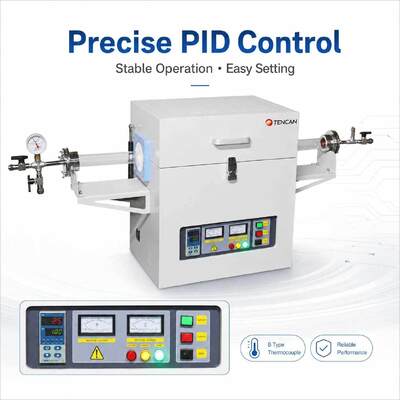

Equipped with a 50-segment programmable temperature controller, the furnace can run automatic heating and cooling programs for complex material processing. It also includes over-temperature protection, leakage protection, and optional molecular pump configuration for applications requiring a higher vacuum level.

Key Features

Maximum temperature options: 1200°C with resistance wire heating, 1400°C with silicon carbide heating elements, and 1600°C with molybdenum disilicide heating elements.

Intelligent 50-segment programmable automatic temperature control.

Double-layer air-cooling furnace shell with low surface temperature.

High-quality alumina polycrystalline fiber furnace chamber for excellent insulation.

304 stainless steel double-sealed flanges for reliable sealing performance.

Adjustable flange support structure to help extend furnace tube service life.

Over-temperature protection with automatic power cut-off.

Leakage protection for improved operational safety.

Heating rate up to 20°C/min.

Temperature control accuracy of ±1°C.

Standard vacuum level up to -0.1 MPa.

Optional molecular pump system with vacuum level up to 7 × 10⁻⁴ Pa.

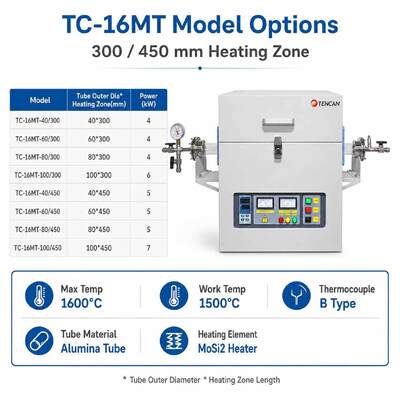

Technical Parameters

Standard 1200°C Series

Standard 1400°C Series

Standard 1600°C Series
